High-Performance Distribution Insulators

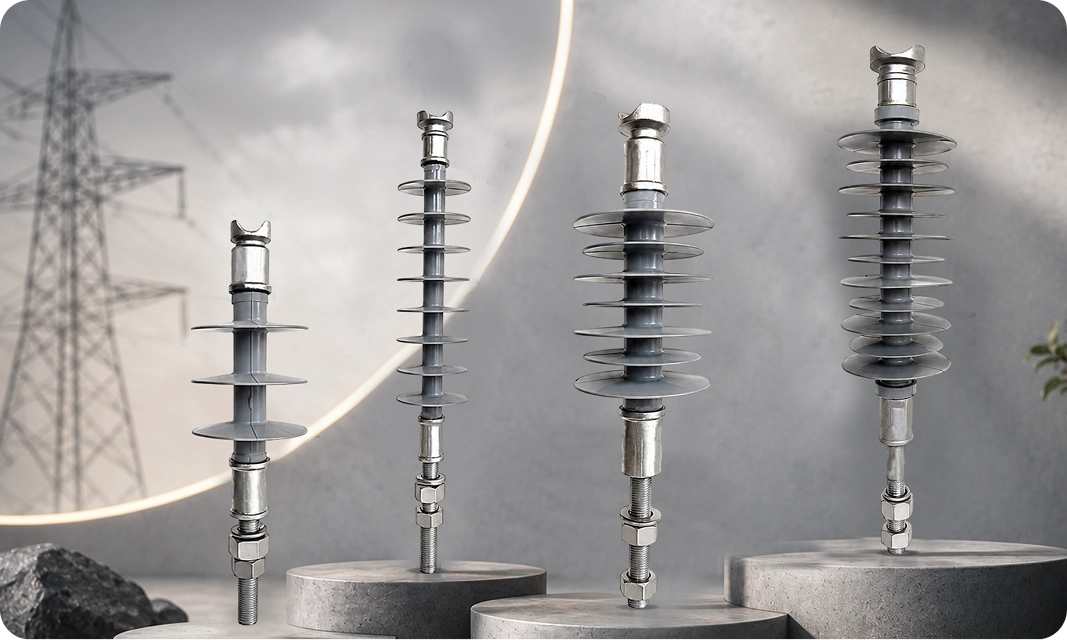

PIN Insulators are mounted on cross-arms of poles and are widely used in low and medium voltage distribution lines. Available in 5KN and 10KN strength ratings, they are suitable for a variety of utility and infrastructure applications.

Manufactured using high-quality materials and strict quality control processes, Scenario Powertech pin insulators deliver long service life and consistent performance.

• Voltage Rating (kV): 11kV, 22kV, 33kV
• Mechanical Load (KN): 5KN/10KN
• CREEPAGE (mm / kV): 25/31/40 mm/kV

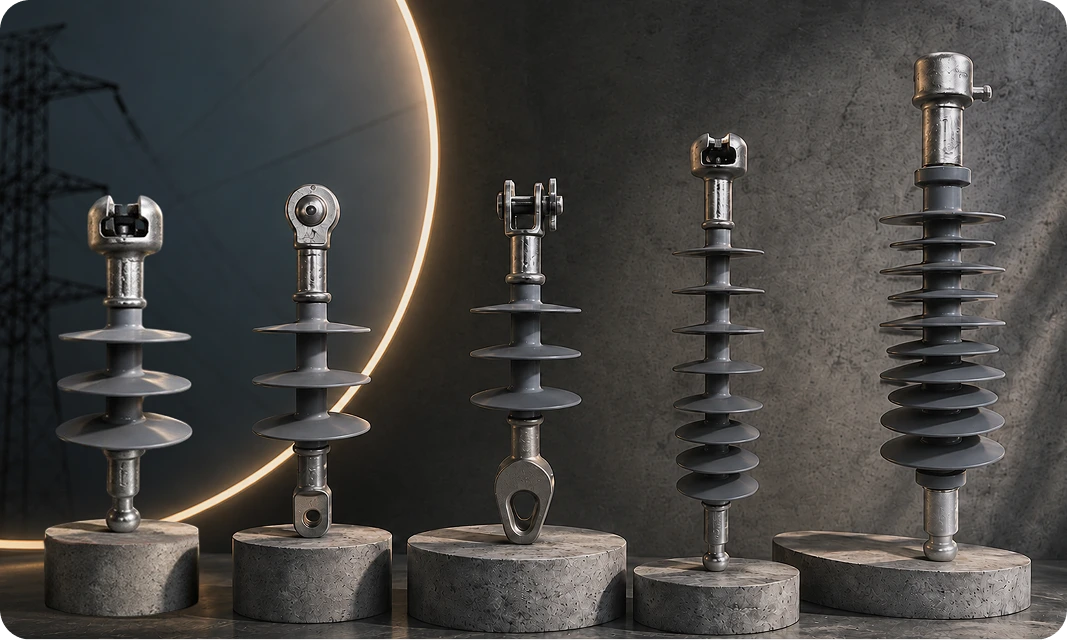

Scenario Powertech Disc Insulators are engineered to provide superior electrical insulation and mechanical strength for overhead transmission and sub-transmission lines. Designed to perform under high tensile loads and harsh environmental conditions, these insulators ensure safe, stable, and uninterrupted power transmission.

Manufactured using quality-controlled processes, Scenario Powertech disc insulators offer excellent electrical performance, high tensile strength, and long service life.

• Voltage Rating (kV): 11kV, 22kV, 33kV
• Mechanical Load (KN): 45/70/90KN
• CREEPAGE (mm / kV): 25/31/40mm/kV

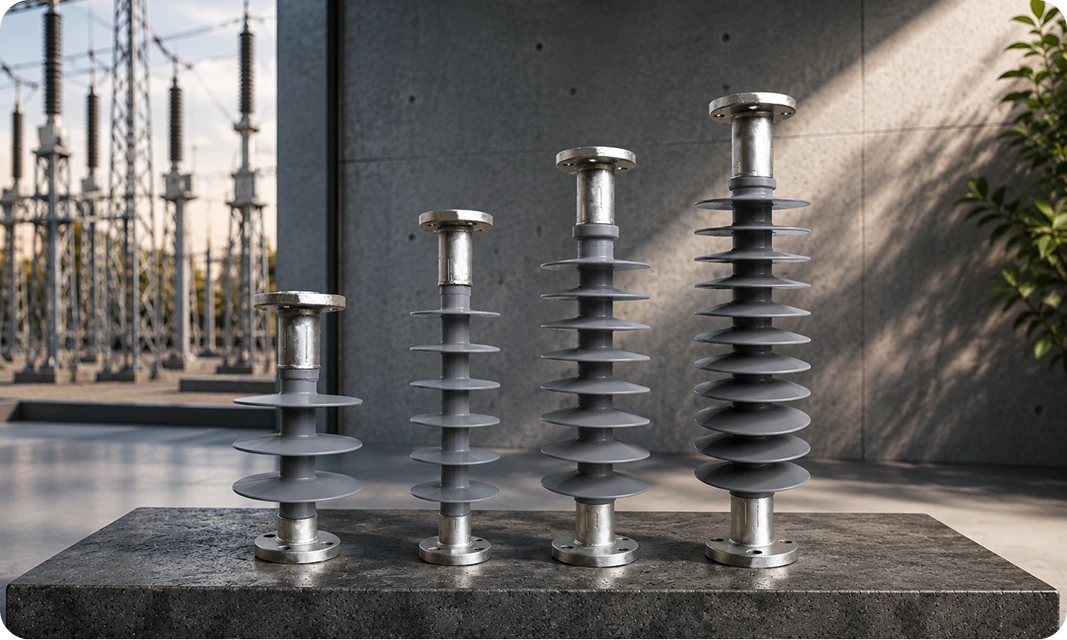

Scenario Powertech Post Insulators are designed to provide strong mechanical support and effective electrical insulation in power distribution and substation applications. Built to withstand mechanical loads and environmental stress, these insulators ensure stable and safe electrical performance.

Available in 5KN and 10KN strength ratings, our post insulators are suitable for a wide range of utility and industrial power systems.

• Voltage Rating (kV): 11kV, 22kV, 33kV
• Mechanical Load (KN): 5KN/10KN
• CREEPAGE (mm / kV): 25/31/40mm/kV

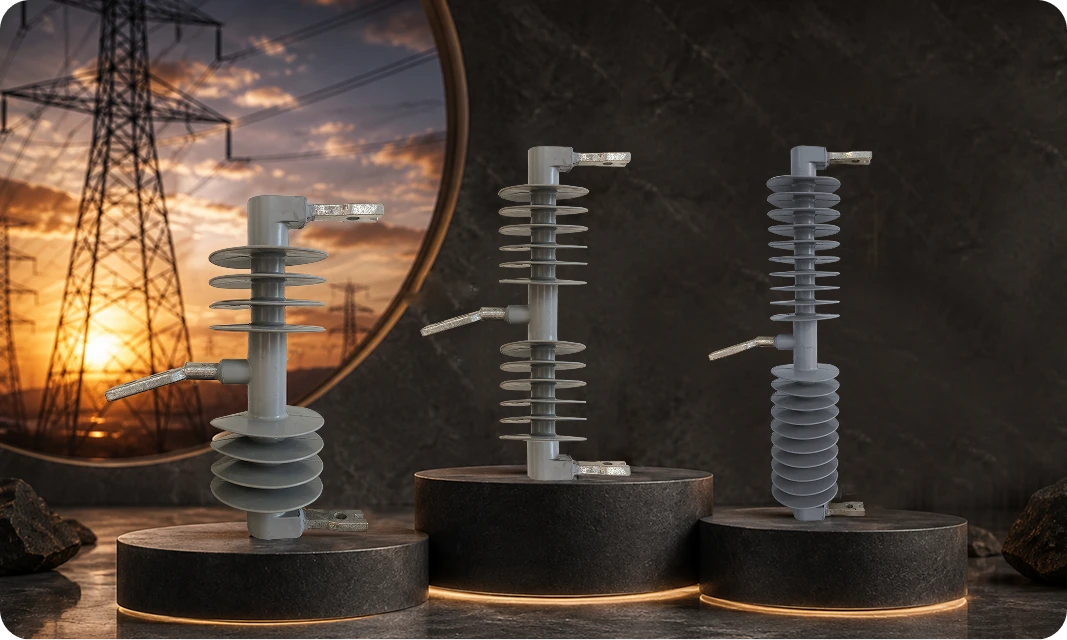

Scenario Powertech Drop Out Fuse Insulators are designed to provide effective protection against overloads and short circuits in overhead power distribution networks. These devices help isolate faulty sections quickly, ensuring safety, equipment protection, and minimal service interruption.

The 11kV drop out fuse is widely used in low-voltage distribution systems to safeguard equipment against overcurrent conditions. Built for outdoor use, it performs reliably under varying weather and load conditions.

• Voltage Rating (kV): 11kV, 22kV, 33kV
• Mechanical Load (KN): 5KN/10KN
• CREEPAGE (mm / kV): 25/27/31mm/kV

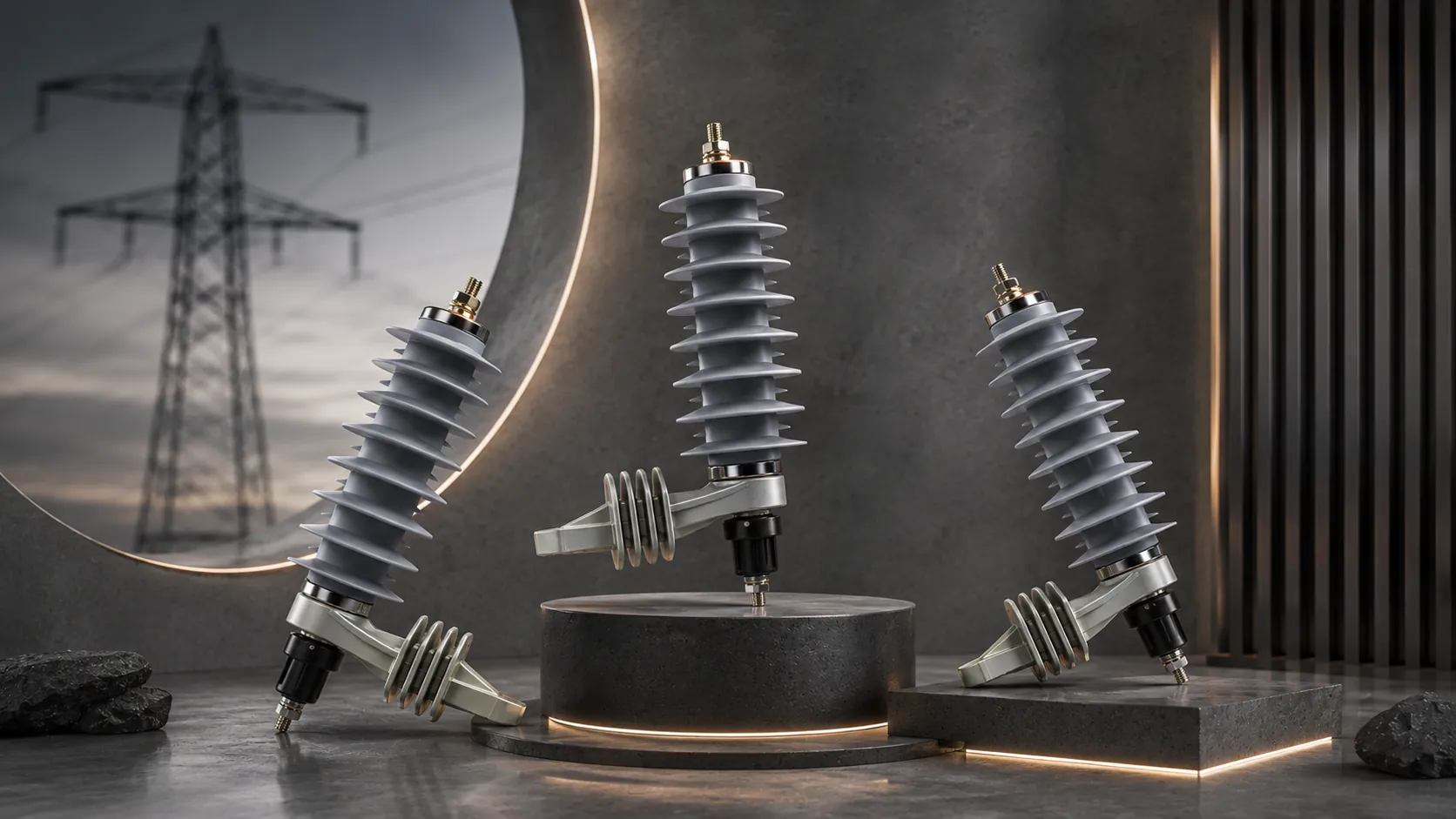

Scenario Powertech Lightning Arrestors are designed to protect electrical equipment and power systems from lightning strikes and transient overvoltage surges. By safely diverting excess voltage to the ground, our lightning arrestors help prevent equipment damage and ensure uninterrupted power system operation.

Available in 5kA and 10kA ratings, these arrestors are suitable for a wide range of distribution and industrial applications.

• Voltage Rating (kV): 5KA, 10KA
• Mechanical Load (KN): –
• CREEPAGE (mm / kV): 25 kV
